Background

I noticed that popular drinks like coffee, smoothies, matcha, and cocktails thrive both at shops and at home—yet boba, despite similar popularity and price, remains almost exclusively a "go out" activity. This observation sparked the question: what's preventing boba from transitioning to home, and what would it take to make the home boba experience worth it?

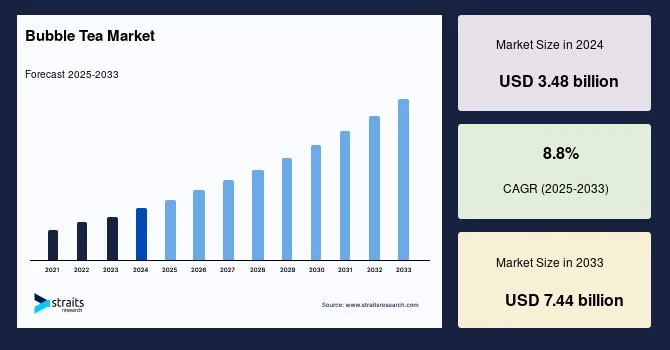

• US bubble tea market is experiencing 7-9% CAGR growth.

• 94% penetration to Gen Z consumers who spend 5-7$ per drink, 2-4 times per week.

• 8.6b hashtag views on TikTok.

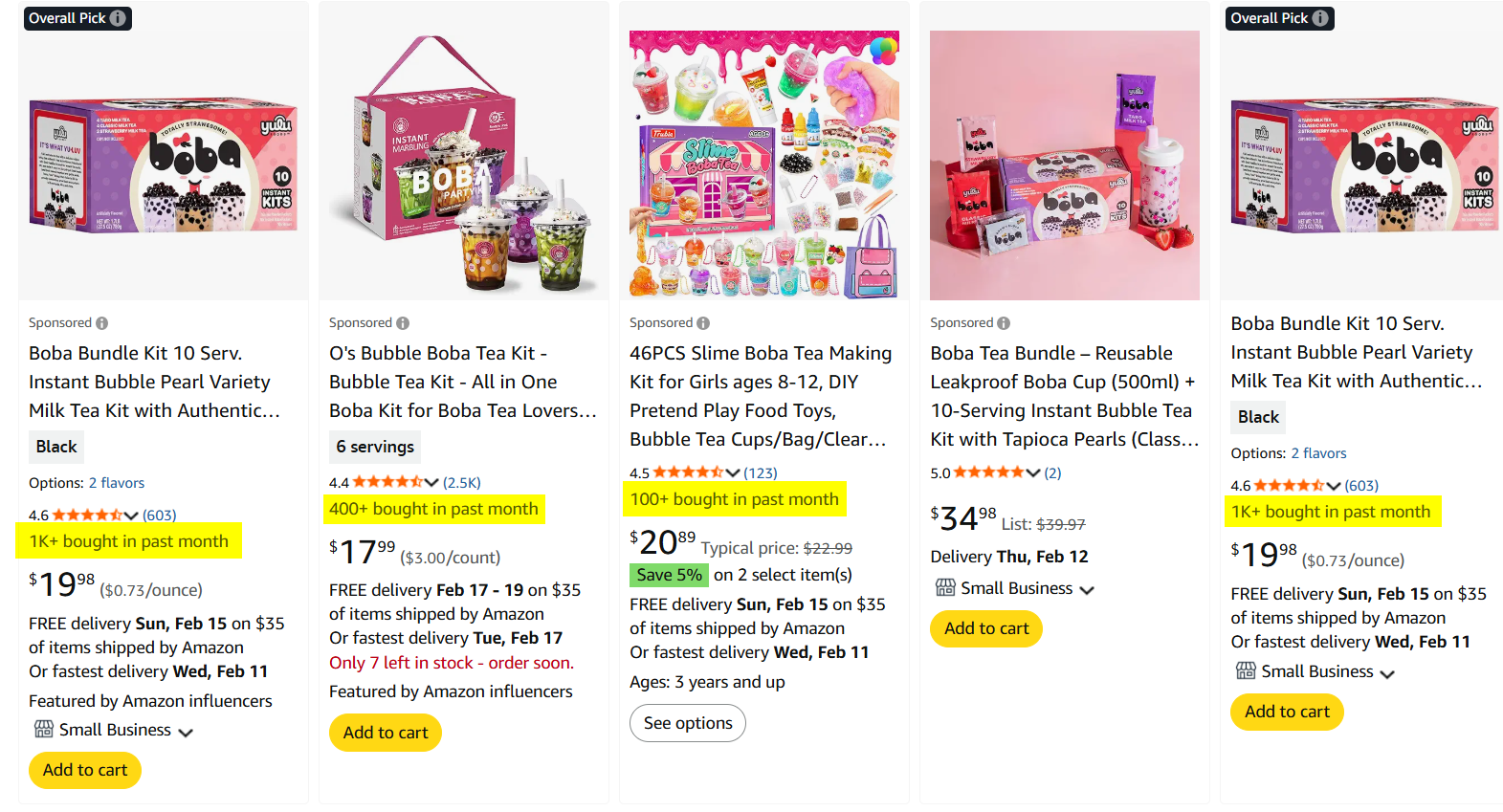

• DIY household kits are the fastest growing application category.

The market shows positive growth, invested consumers, and huge social engagement, so why don’t we see more of it? To better understand boba culture and the drink itself, I interviewed a bobarista at a Kung Fu Tea and the owner of Ding Tea in downtown Grand Rapids.

Insights from Interviews

• Fresh tapioca pearls take ~30 mins of cooking and only last 3-4 hours.

• About 80% of orders include tapioca pearls.

• Shelf stable alternatives like crystal and popping boba exist, which may lend better for home users.

• Bobaristas will often shake the sealed cup right before serving.

• Customers care about posting photos of their drinks online.

Strong market signals exist alongside online virality and a growing DIY segment, but current solutions overlook a critical element: the sealed cup.

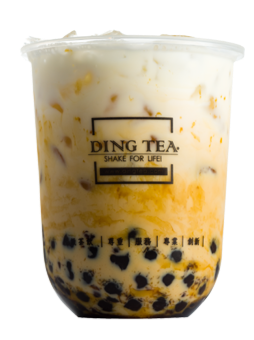

The sealed cup helps define a boba drink’s look, signals quality, and creates a uniquely engaging ritual where customers plunge their straw through the seal — “the stab moment”.

Cup sealers solely exist as expensive commercial machines. If designed for home use, it serves as the missing link to recreating the authentic boba shop experience at home.

Coffee, cocktails, and ice cream thrive at shops and at home. Premium home equipment doesn't just serve existing demand, it creates it. Boba has the ideal prerequisites: frequent high-cost purchases, strong ritual elements, and passionate Gen Z consumers. What's missing is the product that inspires the behavior and makes it feel special.

Design Process

I began exploring how to redesign the cup sealer for the home context. Rather than sketching from scratch, I analyzed existing solutions to understand what works, what doesn’t, and what opportunities exist for reimagining this machine for home users.

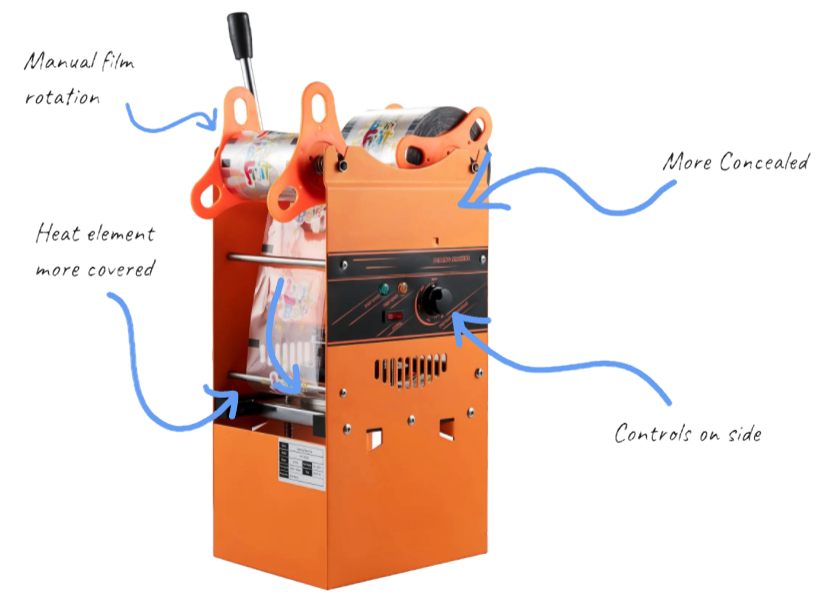

Existing Models

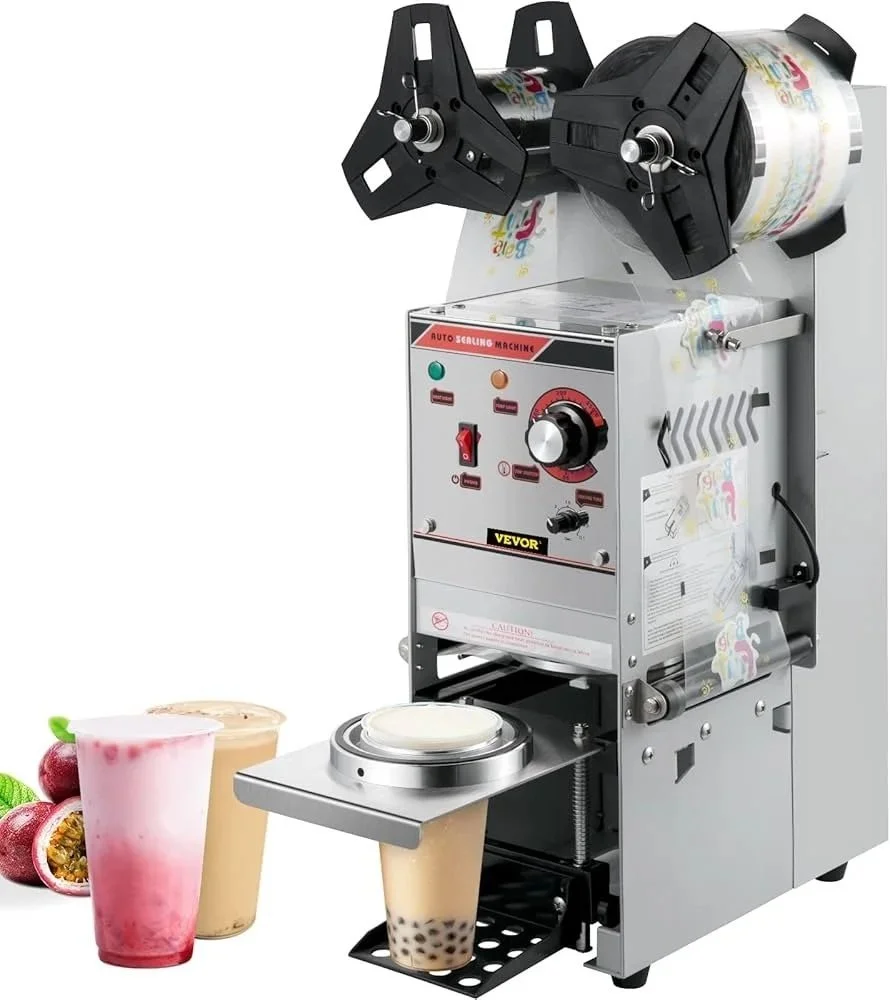

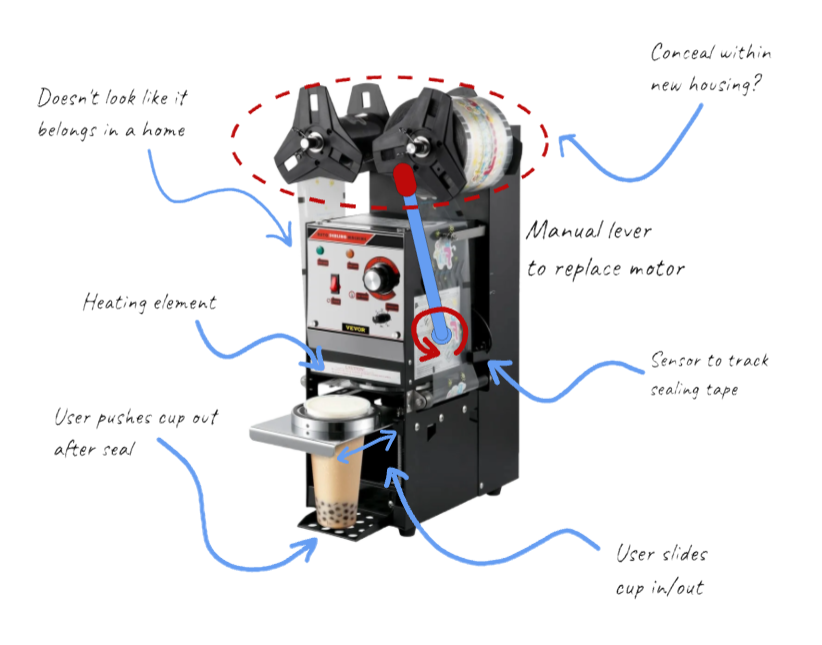

Semi auto cup sealer. 300-500 cups/hr. $230

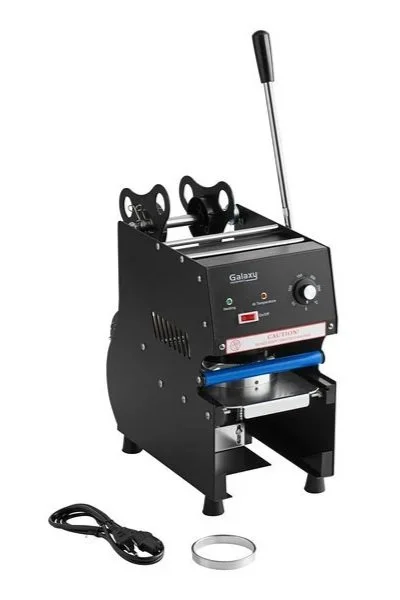

• A home version should mimic simpler manual machines.

• Aluminum heating rings provide fast, uniform heat transfer.

• Existing models are too large and utilitarian for modern kitchens.

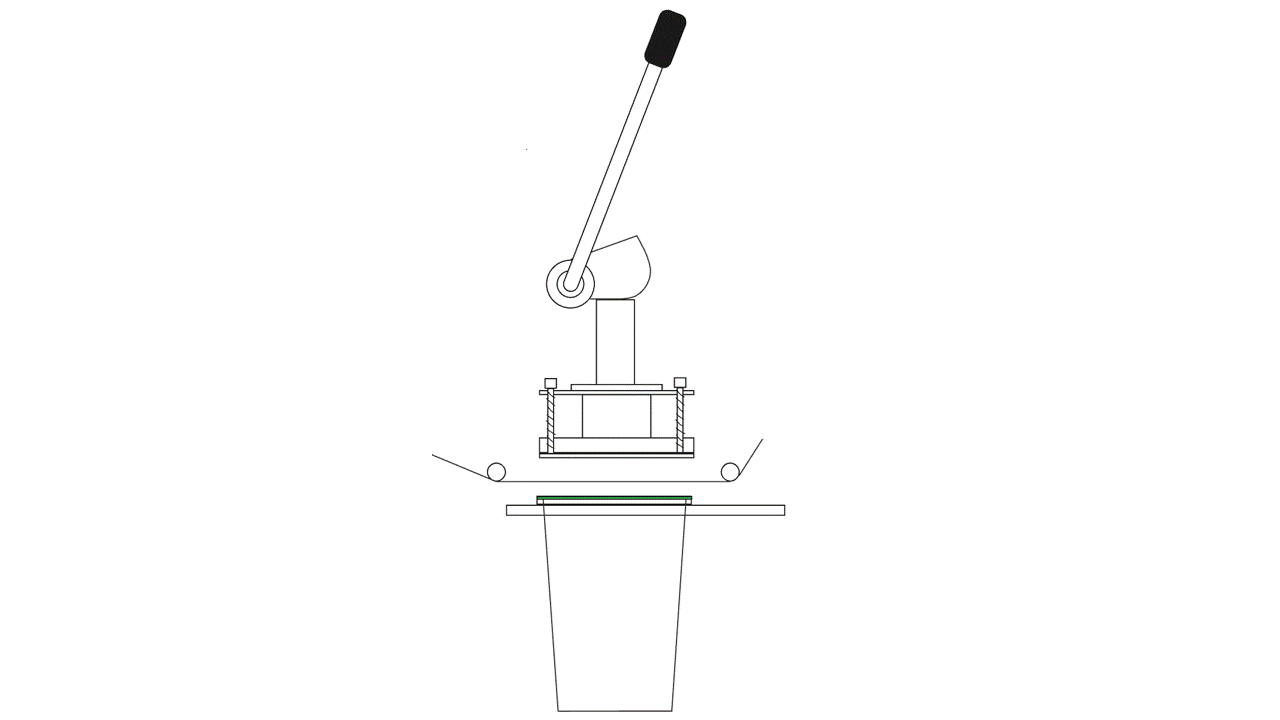

A home version with less cup volume should include a simple cam and follower mechanism to reduce complexity.

Users slide the extendable tray and then engage the lever to seal the cup.

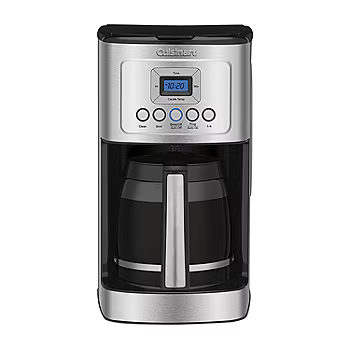

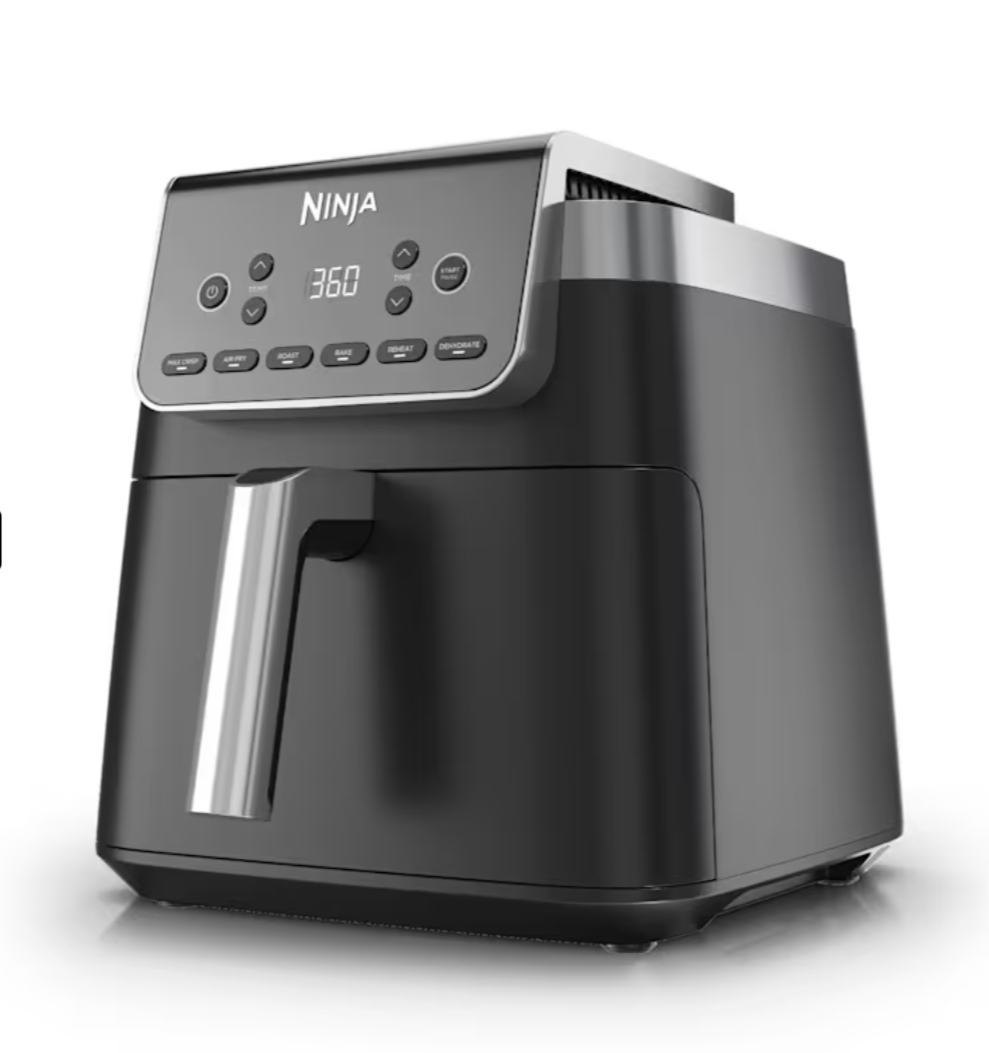

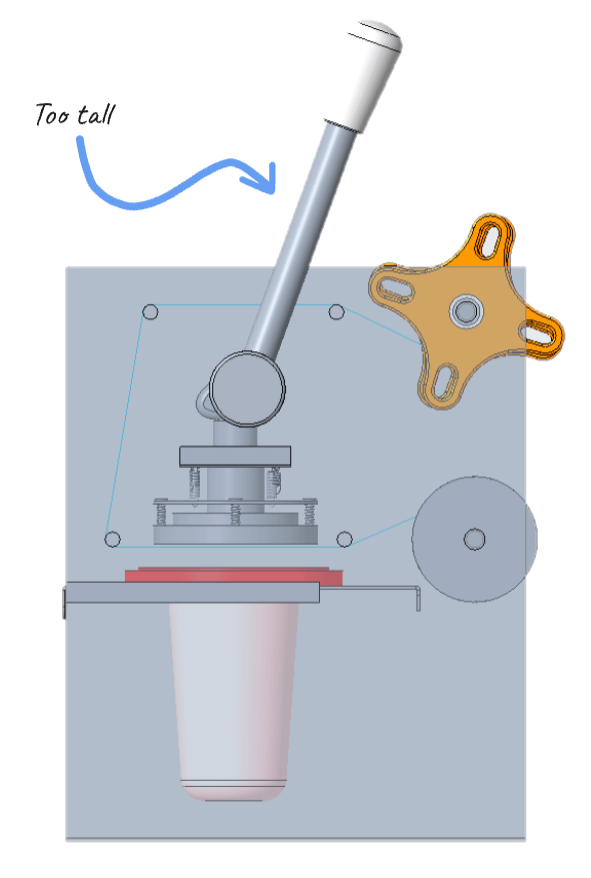

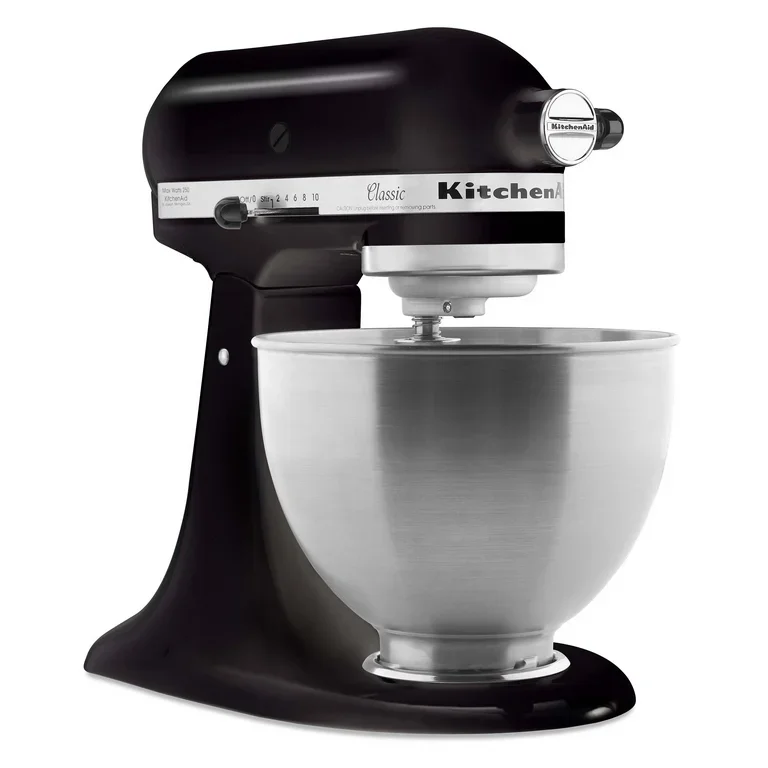

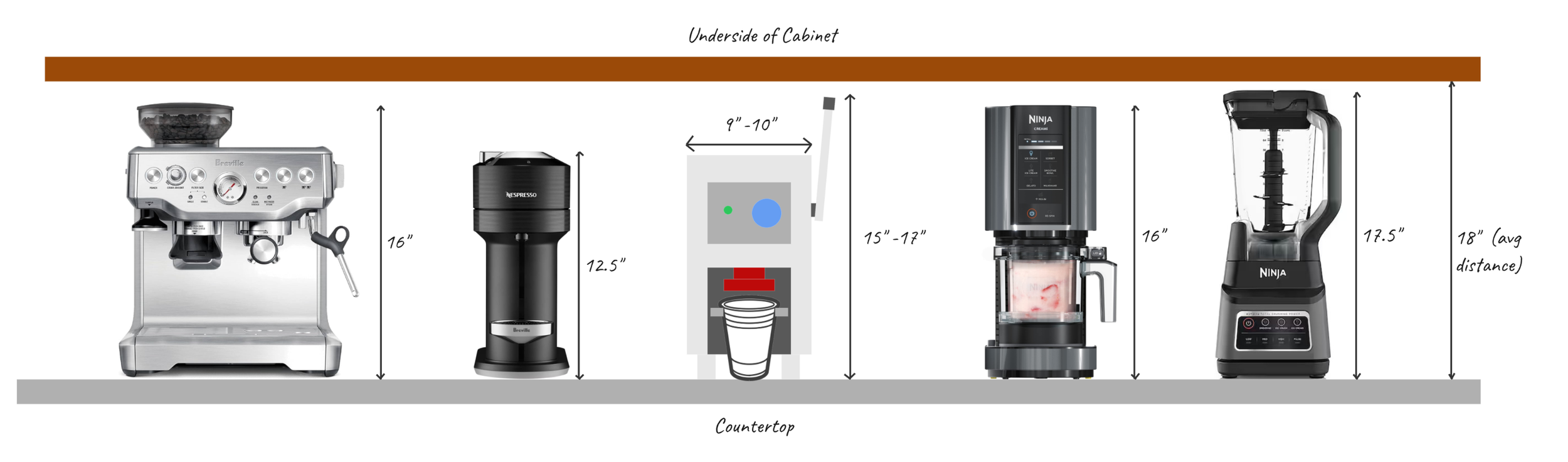

To fit under a standard kitchen cabinet, the total height needs to be less than about 18”. I wanted my machine to echo the design language of popular small kitchen appliance brands like Ninja, Breville, KitchenAid, and Cuisinart.

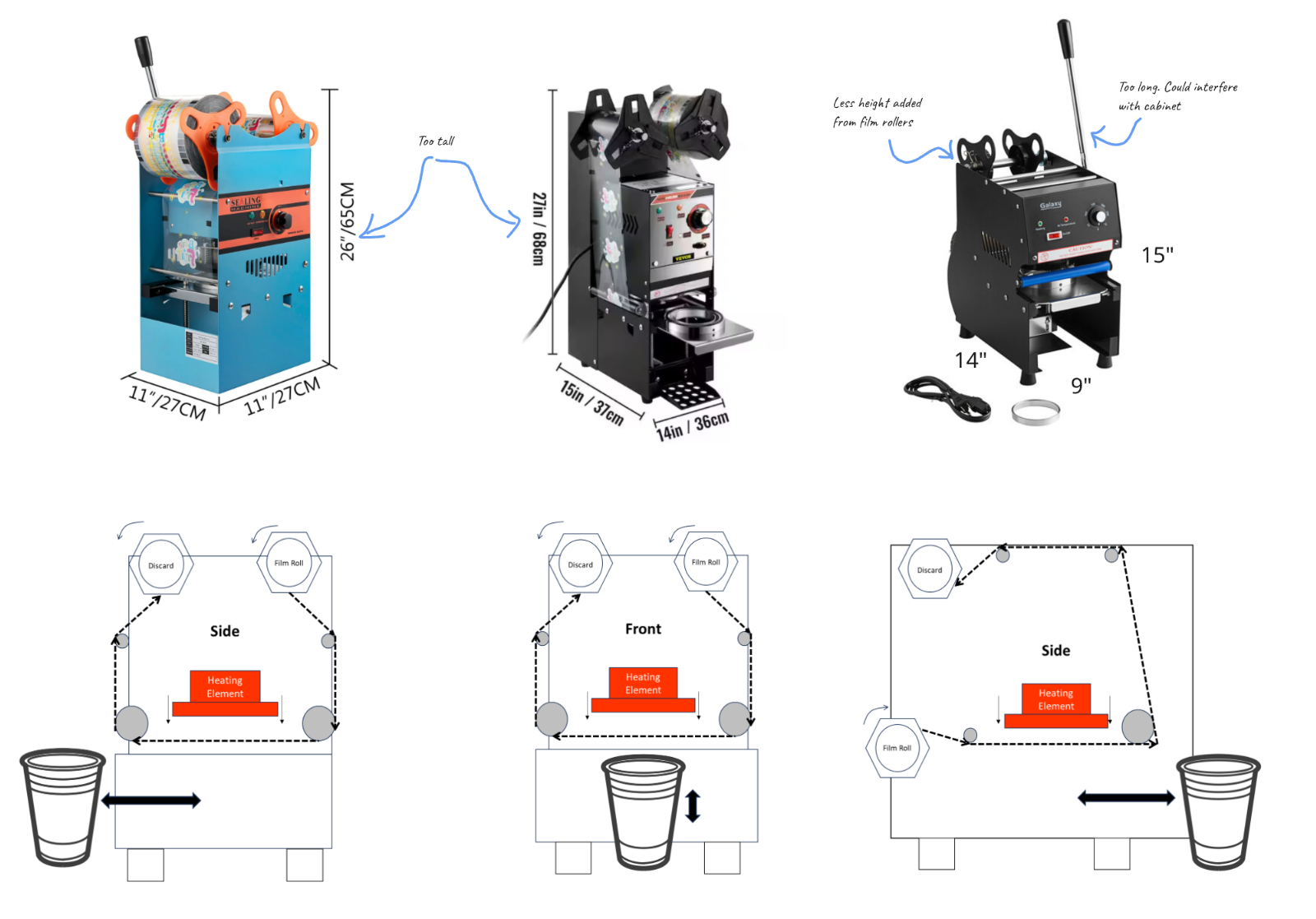

Sealing Film Path

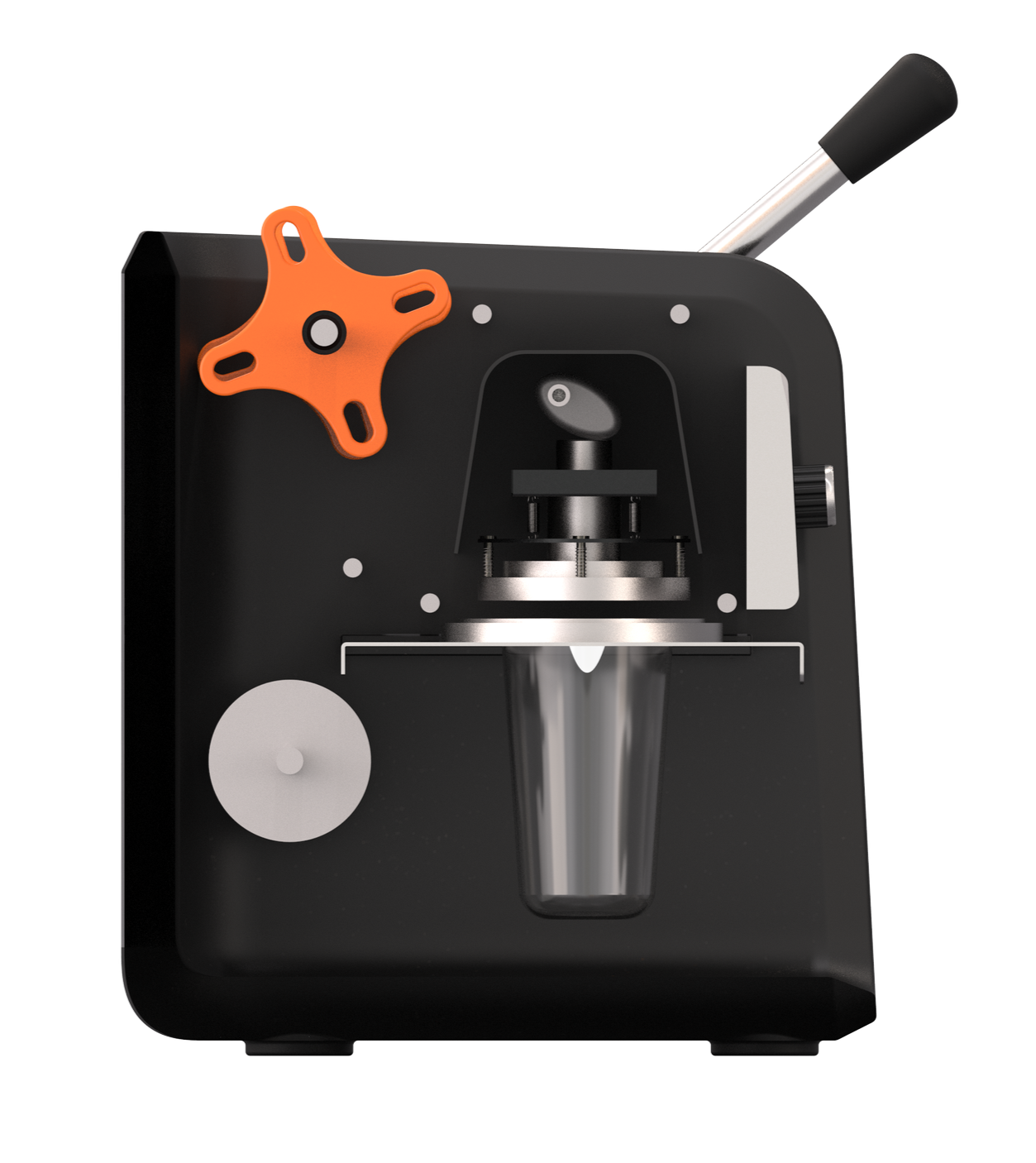

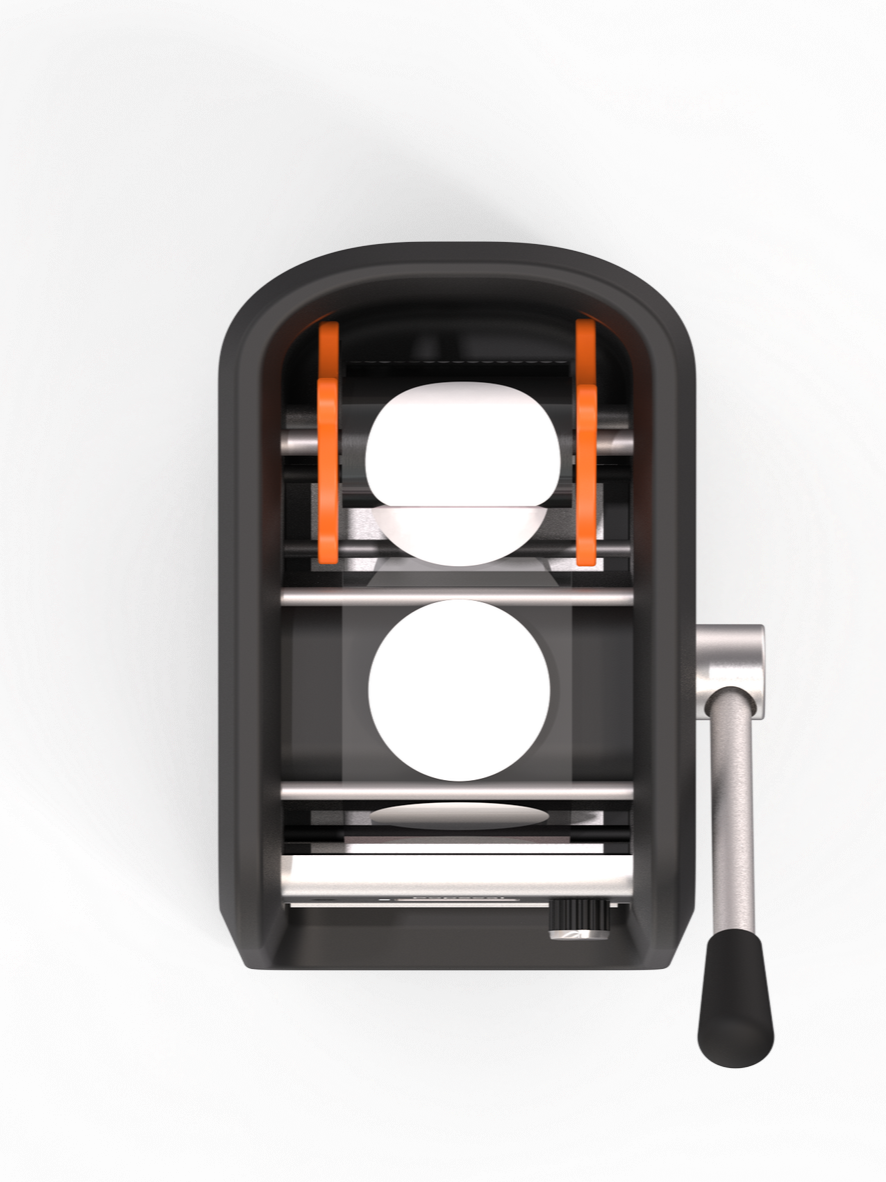

The sealing film path affects the product’s footprint, aesthetic, and user interaction. I wanted my machine to hide one of the film rolls and use the other for users to rotate the film to fit the modern kitchen appliance aesthetic.

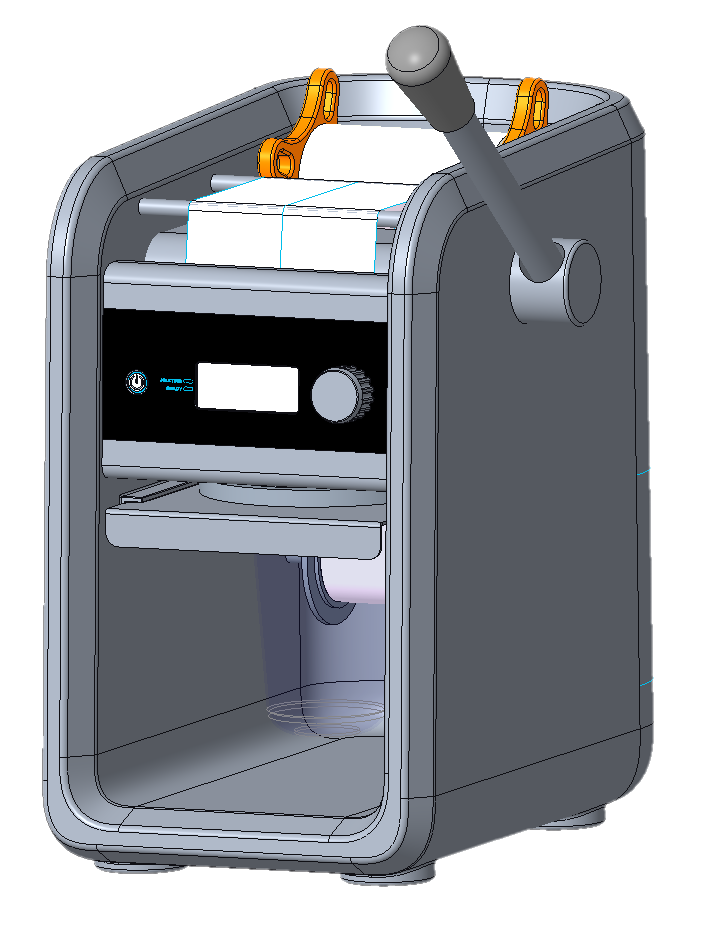

CAD Modeling

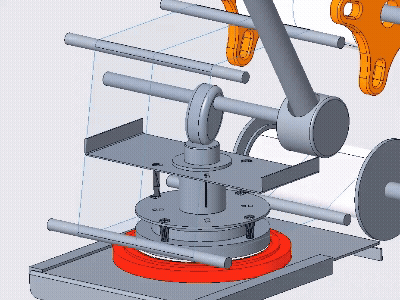

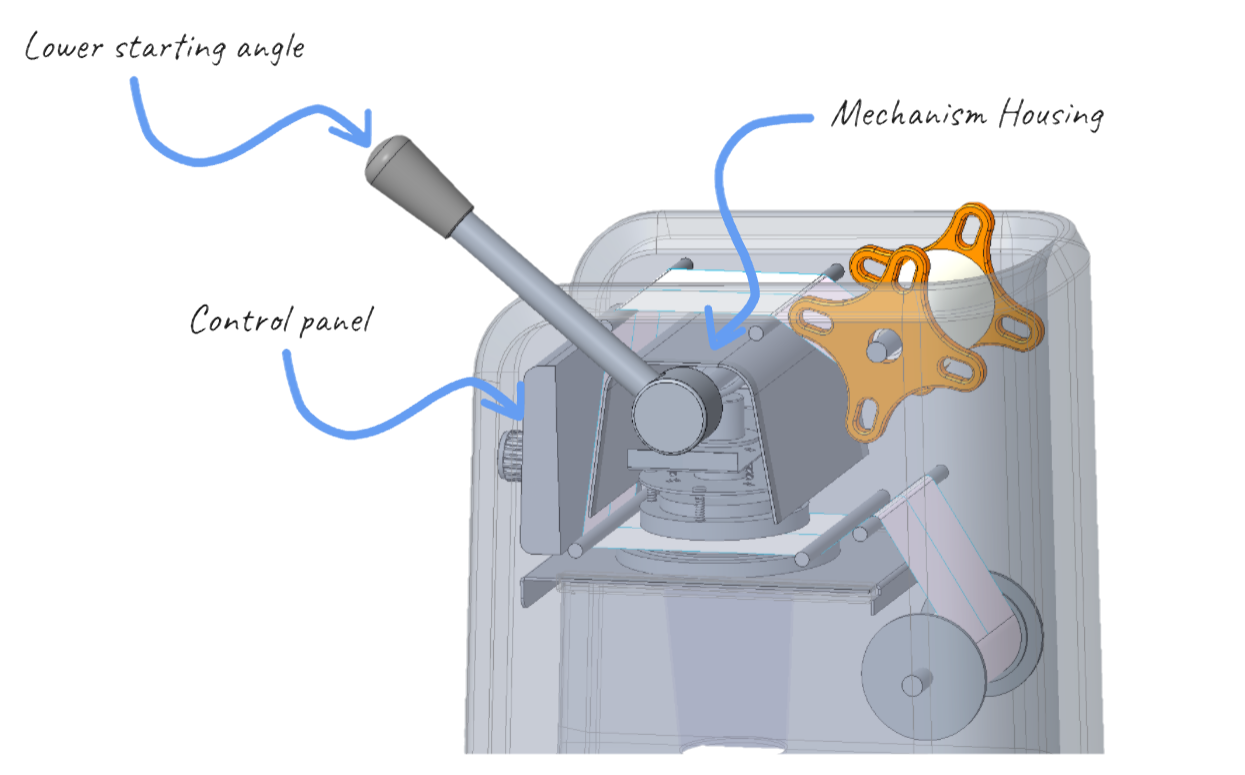

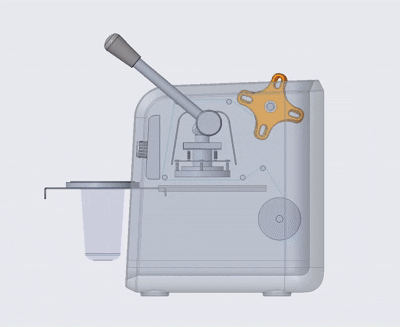

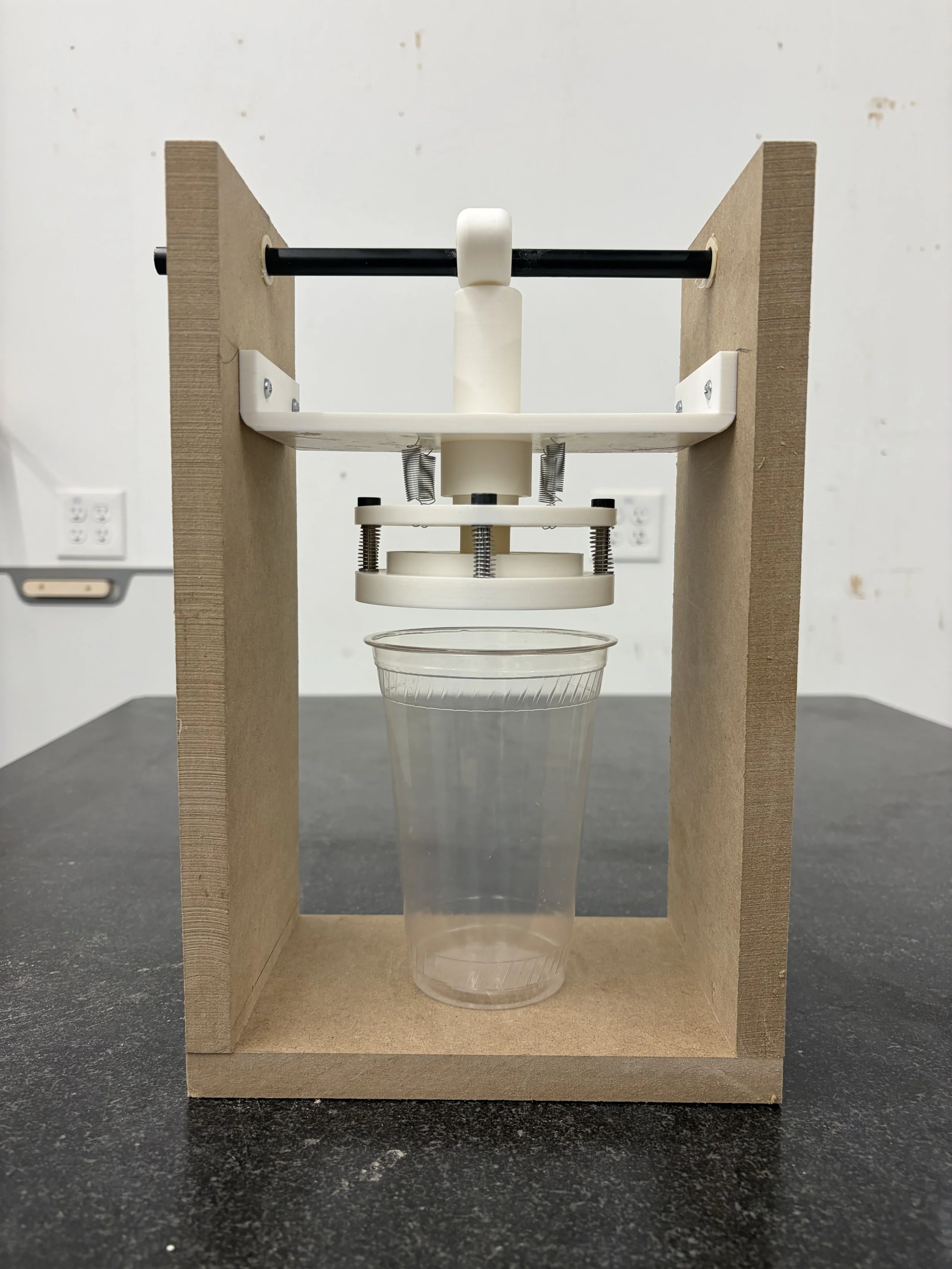

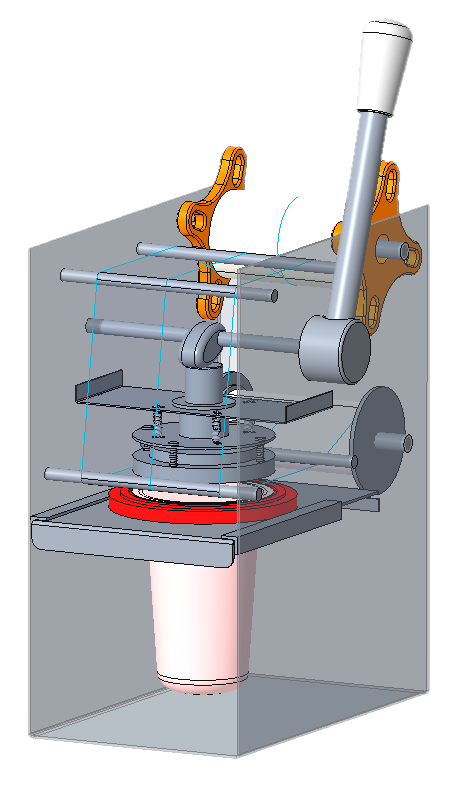

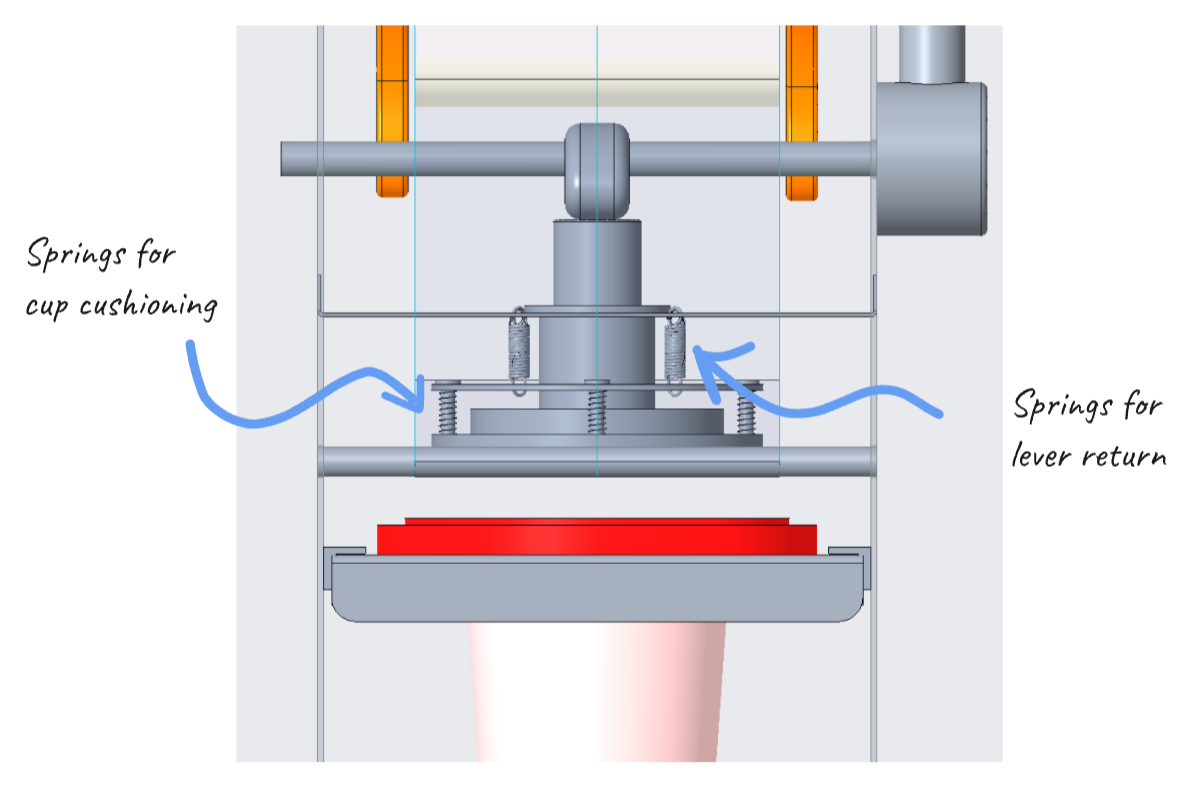

I started by modeling a simpler version of the machine to better understand the mechanism. From there I concepted the outer housing.

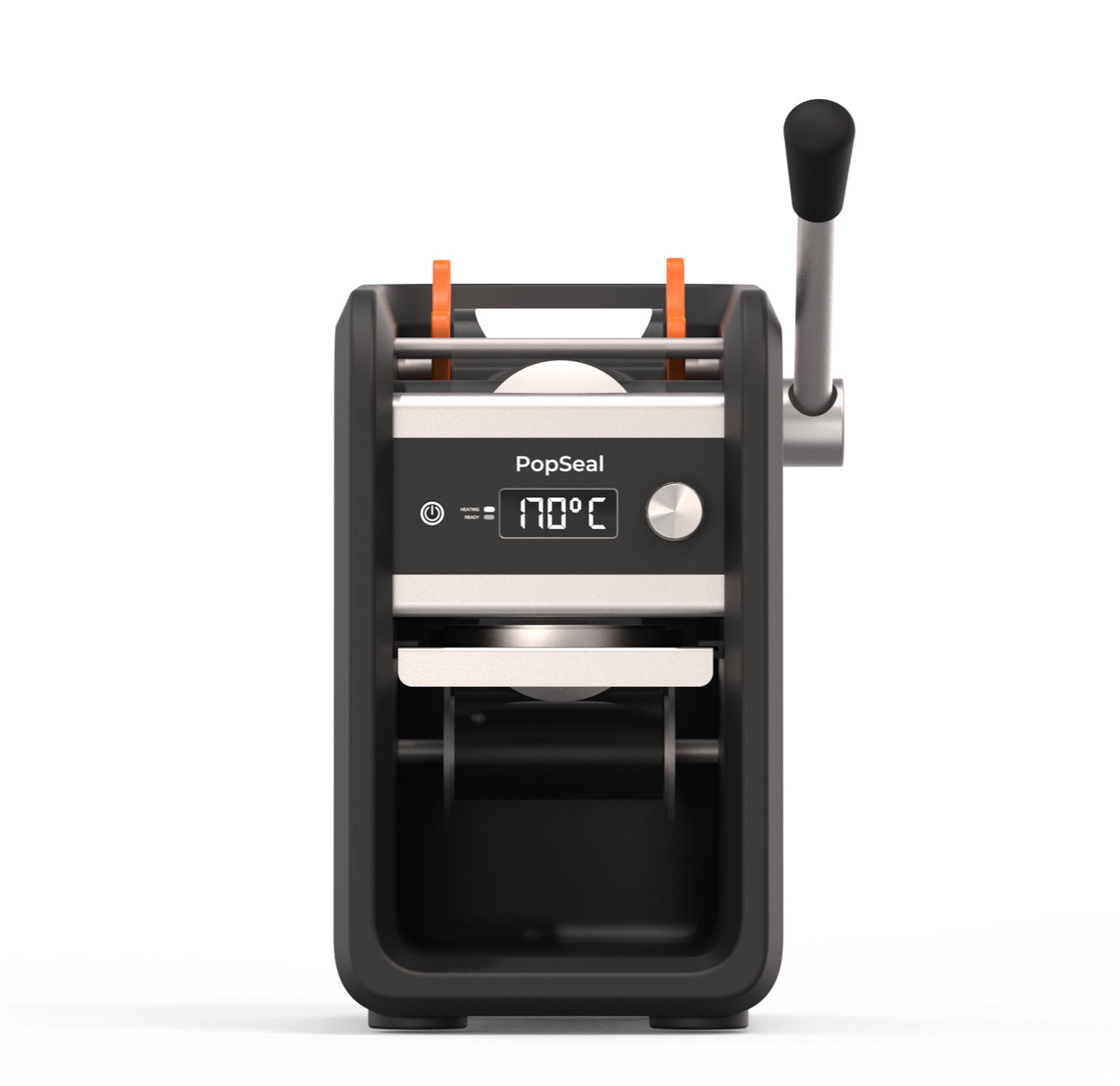

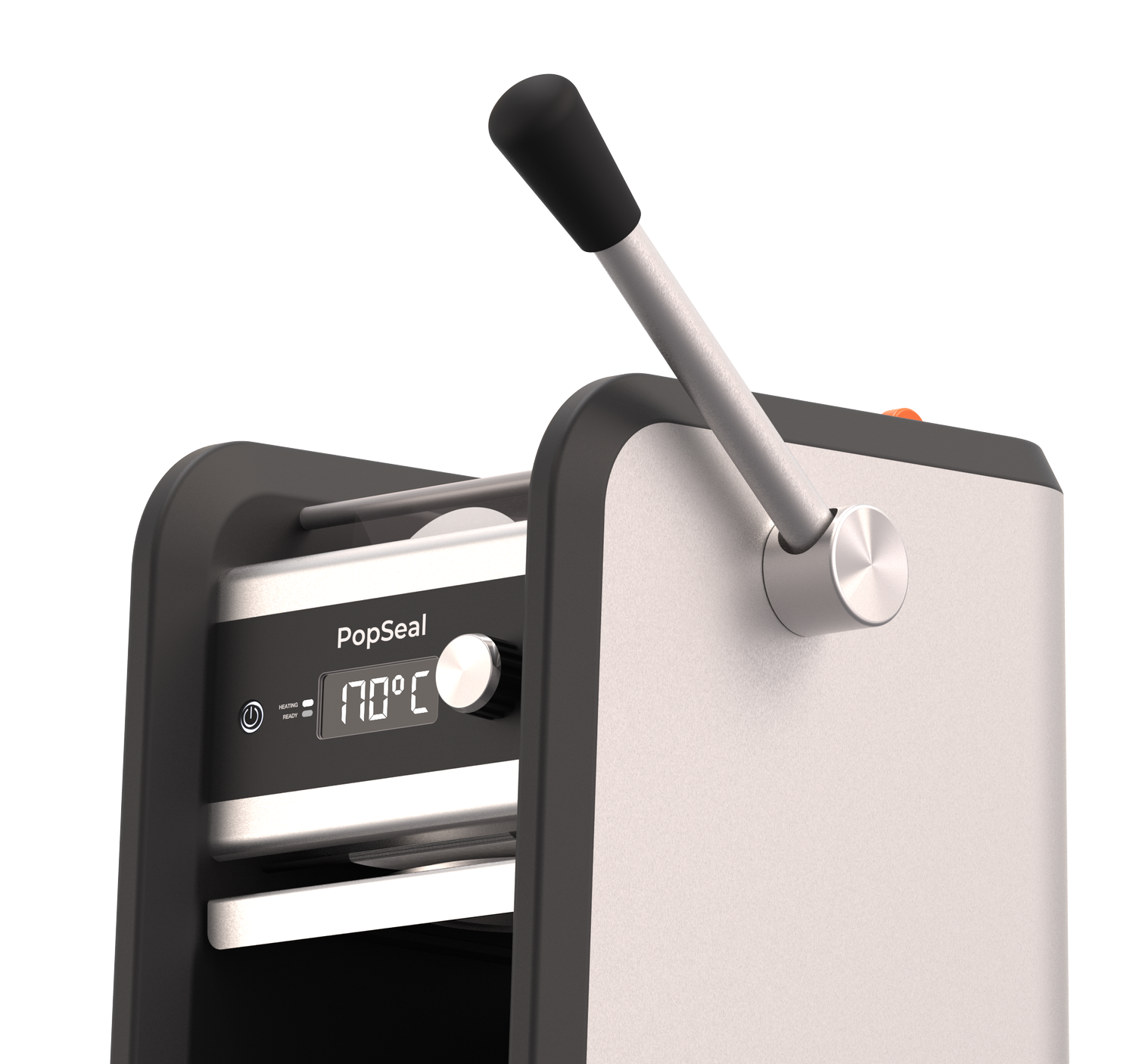

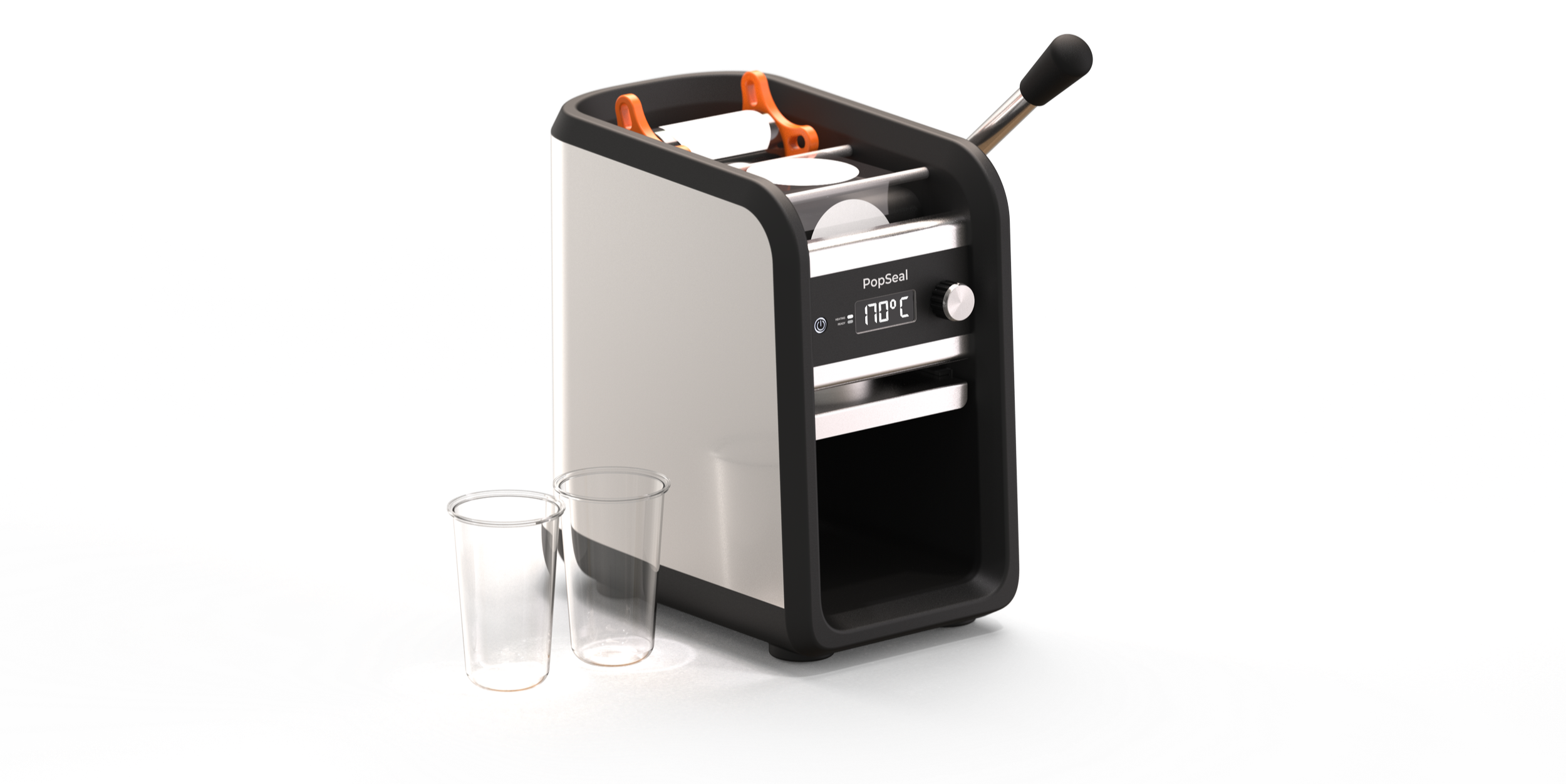

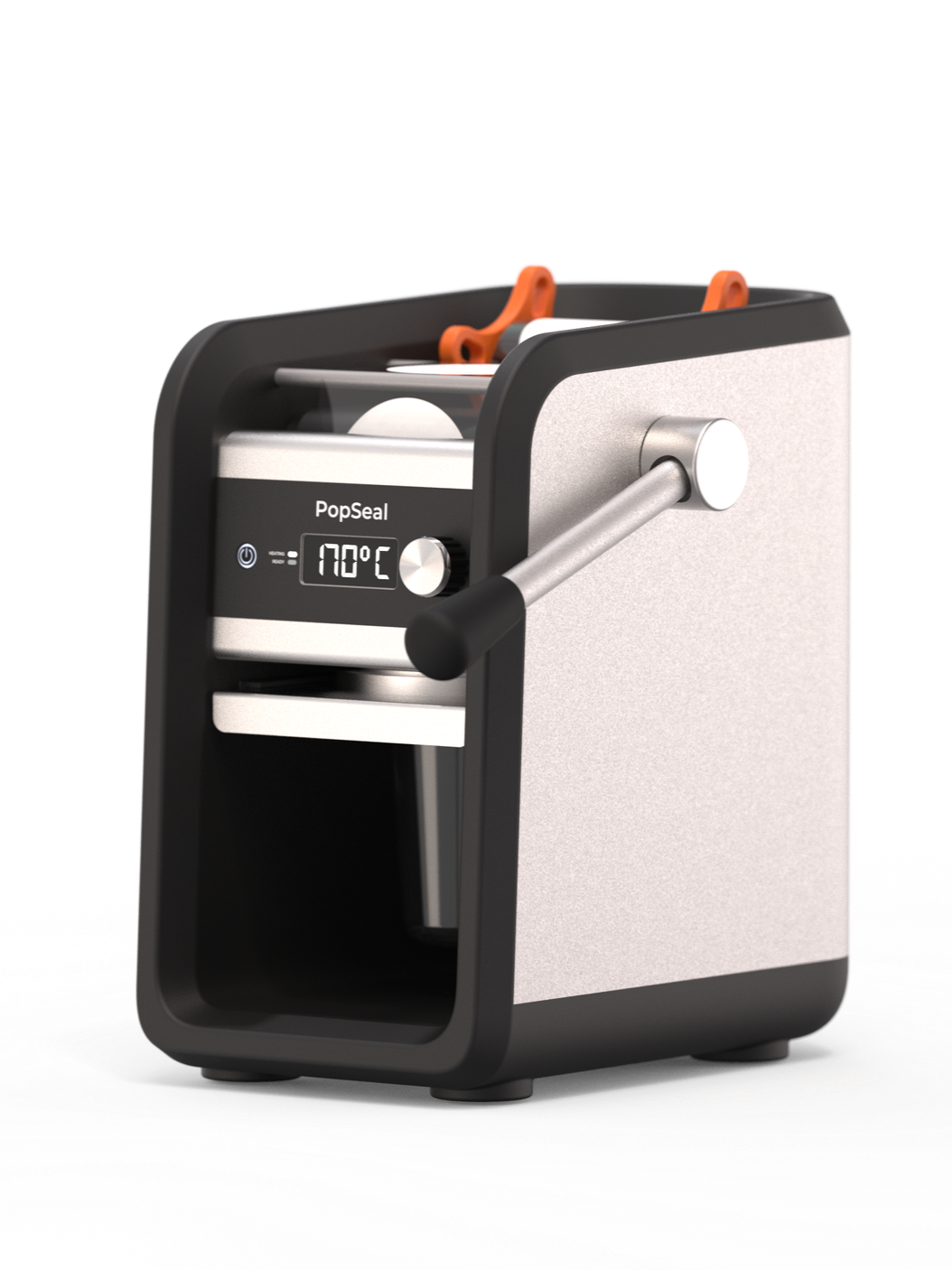

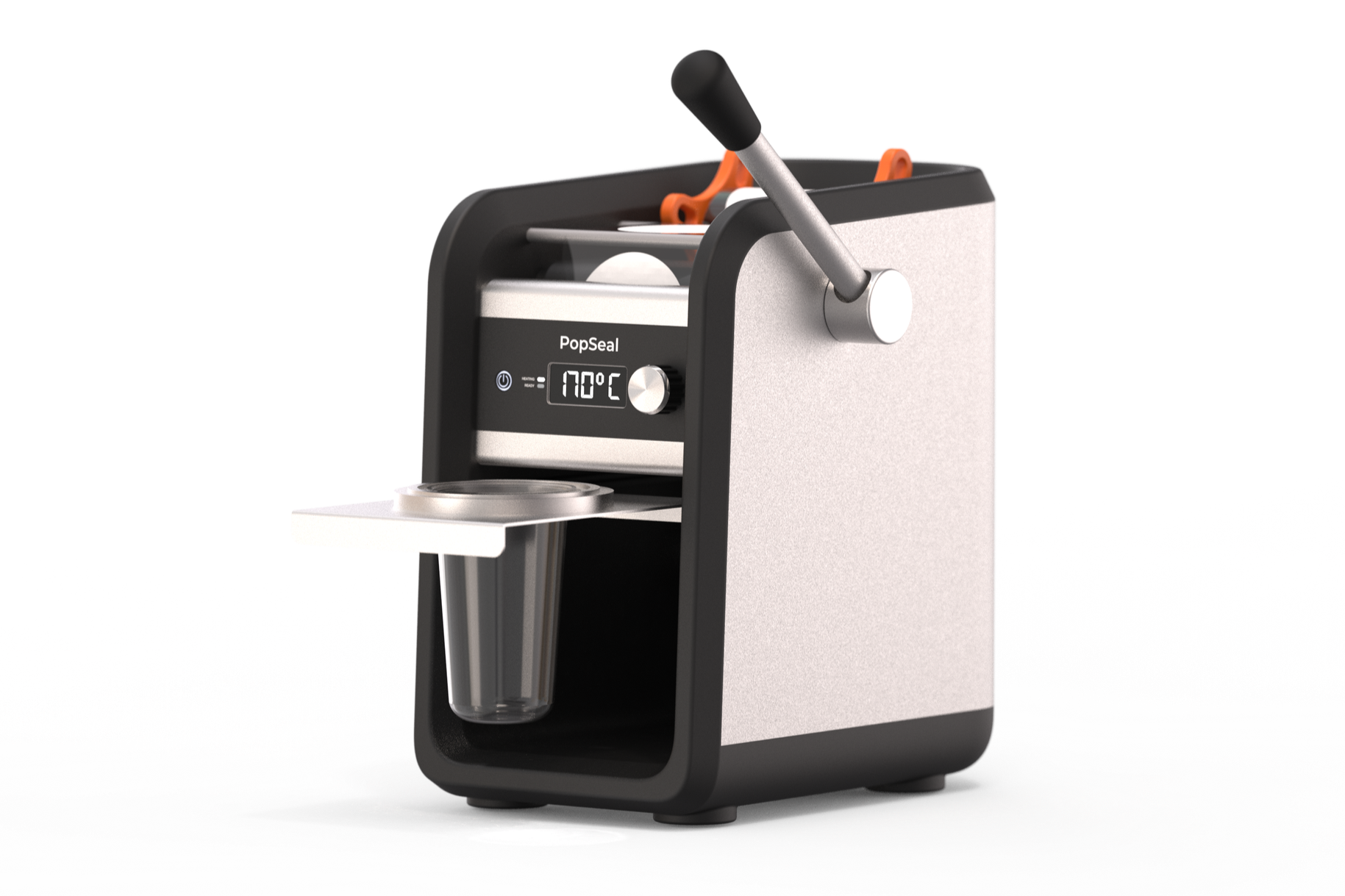

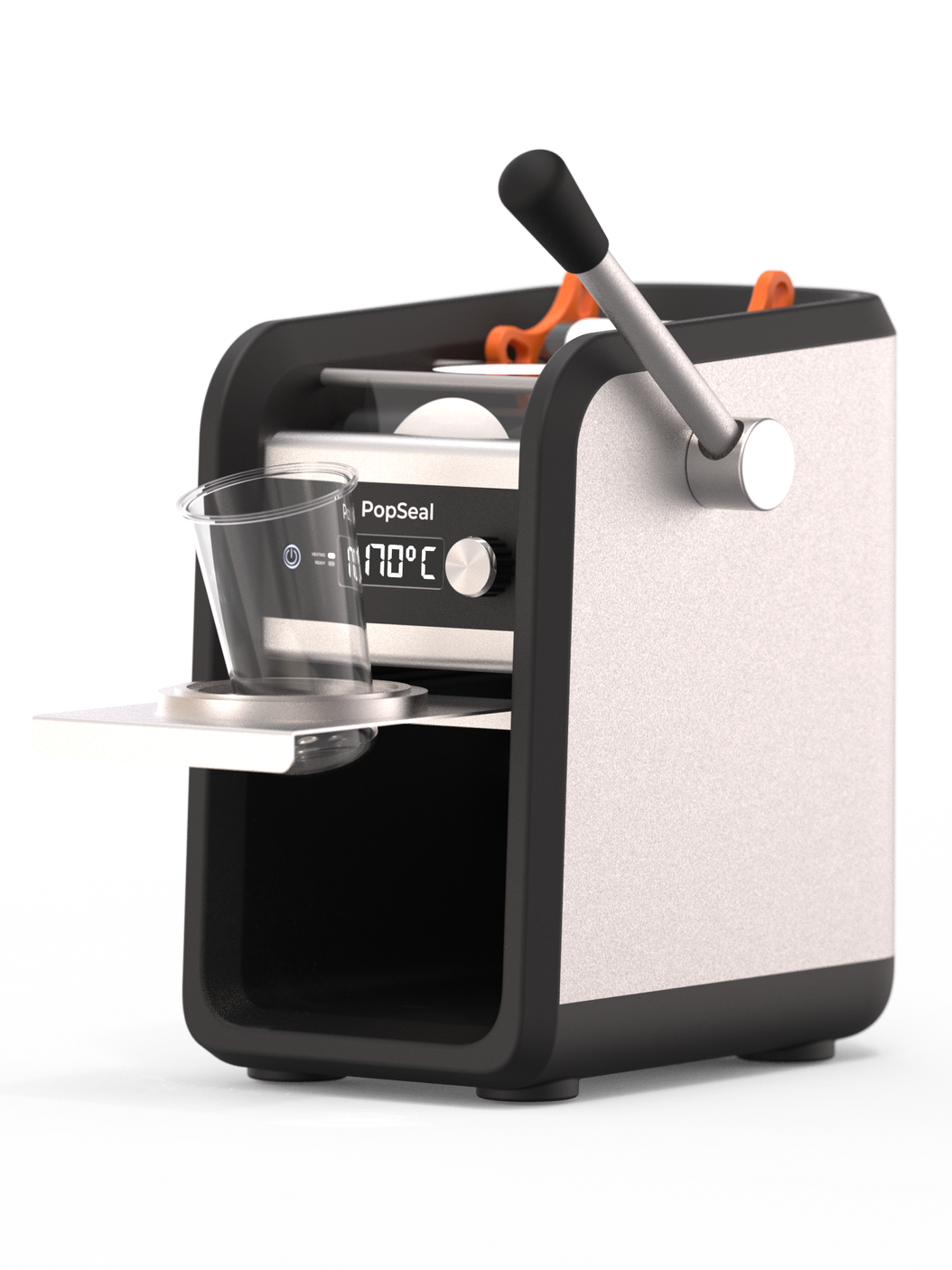

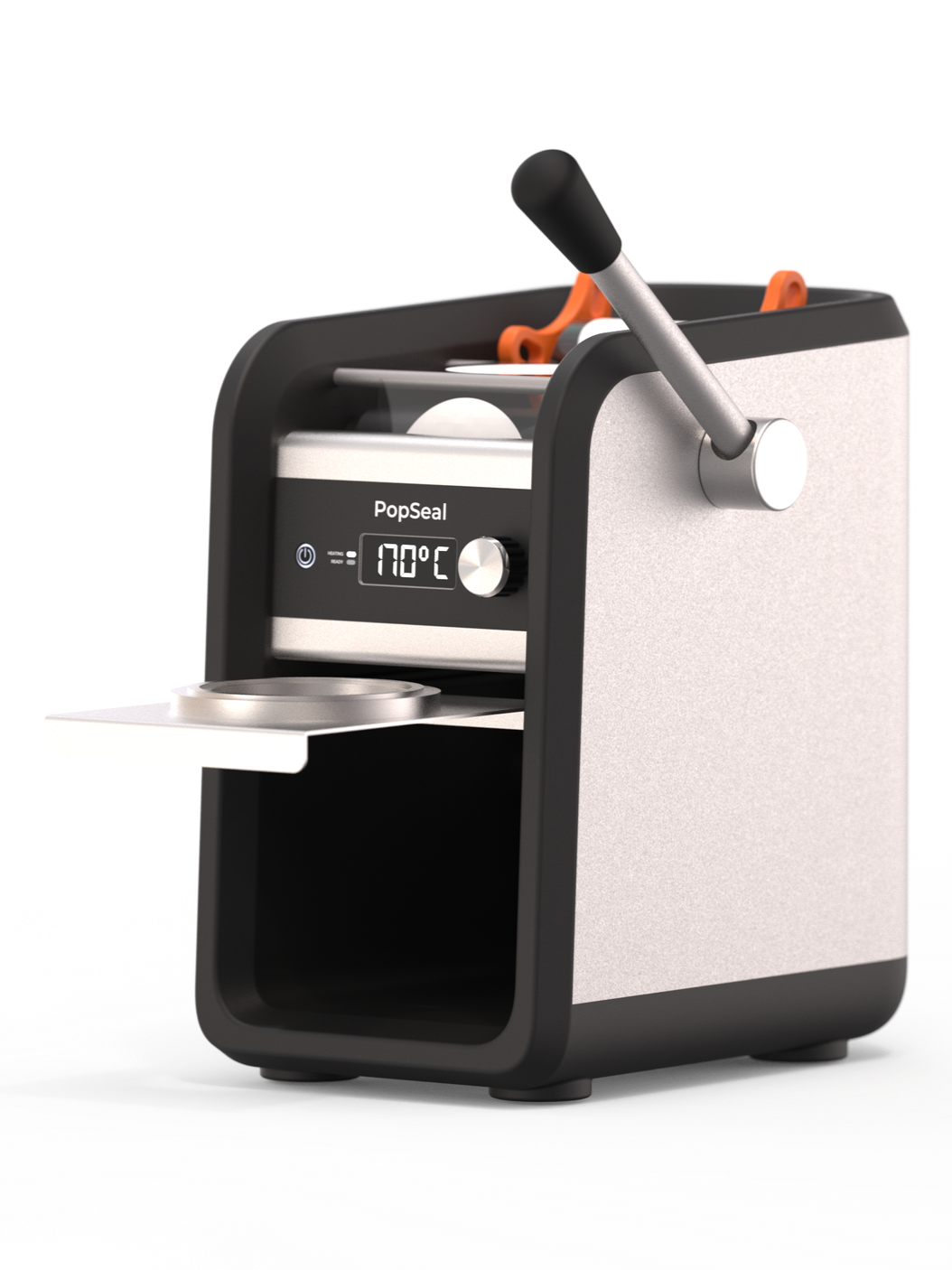

Refined Model
